Φ300 Vertical Profile projector Model VP12-SR Series VP12-SR Series manufacturer from China Guiyang Joint-Win Import and Export Co., Ltd

Payment Terms:	T/T,L/C
Place of Origin:	, China (Mainland)

Product Detail

Model No.: VP12-SR Series

Production Capacity: 1000

Means of Transport: Ocean

Delivery Date: 7

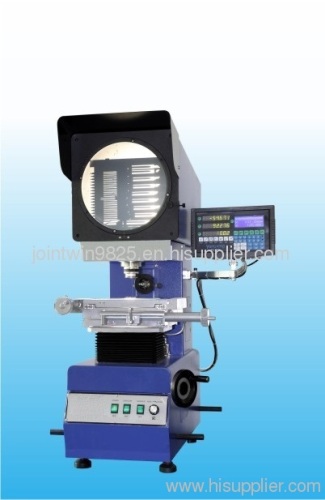

Φ300 Vertical Profile projector Model VP12-SR Series

The Specifications:

Model Items			VP12-1510SR		VP12-2010SR
Work-stage	The size of glass work-stage(mm)		196*125		262*154
	The size of glass work-stage(mm)		306*206		356*206
	X.Y axis travel (mm)		150*100		200*100
	Z axis travel (mm)		85
	Mini displaying value(mm)		0.001 (digital display)
Projection screen		Size (mm)	Ø308, effective range≥Ø300mm
		Rotary range	0 ~ 360⁰
		Angle resolution	1' or 0.01º
Lifting system			45 ⁰helical gear guide lifting system
Objectives		Magnification	10X(Standard)	20X(Option)		50X(Option)	100X(Option)
		Object view	Ø30mm	Ø15mm		Ø6mm	Ø3mm
		Working distance	78.33mm	44.93mm		27.63mm	23.60mm
Instrument illumination			Transmission and reflection light source: 24V/150W-halogen lamp
Power			AC110V/220V; 50Hz/60Hz
Accuracy			3 + L/50 (um)
Dimension (Lx W x H)			5707701180mm
Weight			150Kgs
Data processor			Functional digital readout YD-8000
Optional Accessories			20x, 50x, 100x objective and mirror; Rotary work-stage; 2D Measuring software.
