Model No.: YMM-CNC

Delivery Date: 12

Production Capacity: 1000

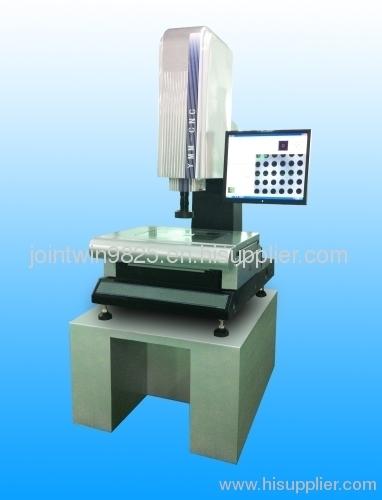

Cantilever Full-Auto Vision Measuring Machine YMM-CNC Series

Features

1.X.Y.Z axis is driven by Japan "Cool Muscle" Servo motor, high positioning accuracy, smooth operation

2.Originally imported American TEO 1/2'' 0.43M Pixel color CCD Camera

3.Originally imported American Navitar 0.7-4.5X Motorized Zoom Lens

4.X.Y.Z axis adopts high precise granite, so the performance is very stable.

5.Programmable constant current driven 8 division LED ring surface light as a very good light source system can provide very good illumination effects.

6.Functional full-auto measuring software model YR-CNC can program and measure automatically
Specifications

Item Model	YMM-3020CNC	YMM-4030CNC	YMM-5040CNC
X.Y.Z Axis travel (mm)	300200200	400300200	500400200
X.Y.Z axis Resolution	0.001mm
Measuring Software	YR-CNC measuring software
Servo Motor	Japan "Cool Muscle" Servo Motor
Measuring Hardware	Lenovo Computer + 17'' LCD Monitor( "Celeron " 4 CPU, 160G Hard disc, 1G Memory)
Zoom Lens	American "Navitar"0.7-4.5X Step-Zoom Orientation Lens Step-Zoom
Total Magnification	20X~266X (12-312X is avaiable)
CCD Camera	American TEO 1/2’’ 0.43Mpixel High-Definition Color CCD Camera
Surface Illumination	8 Divisions program control light source
Contour Illumination	Infinite LED adjustable light source
X.Y Axis Accuracy	(3+L/250)um
Repeatability	0.003mm
Transmission System	Imported high-precise ball screw transmission system
Operation System	CNC program control operation system
Loading Weight	35Kgs
Dimension(LWH)	132412201770mm	8305801100mm	9707201100mm
Machine Weight	330	560	630
