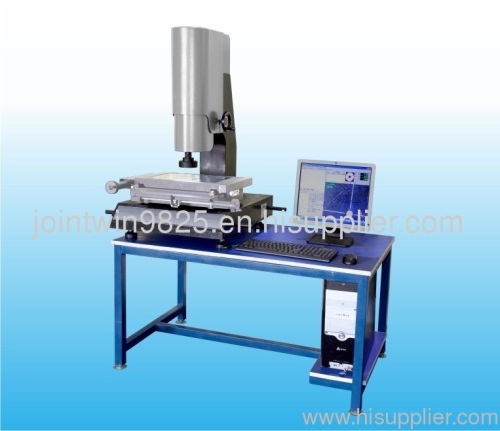

This machine is suitable for all 2D measurements. It is widely usedin the industries of machinery, electronics, watch, plastic, module etc. Its functional YR-VT measuring software can realize the functions of all 2D flatness measurements, on the map, profile scanning, special SPC statistics, manual CNC, Macroscopic measurement and so on. Z axis adopts granite column, which makes Z axis non-contact precise measurement and flatness measurement available.

Item          Model	YMM-1510ZVT	YMM-2010ZVT	YMM-3020ZVT	YMM-4030ZVT	YMM-5040ZVT
X.Y.Z axis Travel (mm)	150*100*220	200*100*220	300*200*220	400*300*220	500*400*220
X.Y.Z Resolution	0.001mm
A X.Y Axis ccuracy	(3+L/200)um
Repeatability	3um
Measuring mode	Video type
CCD Camera	Japan "Sony" 1/2" 0.43 MPixels high definition Color CCD Camera
Objectives	American "Navitar" High definition 0.7~4.5X zoom lens
Working distance	115mm (video)
Computer (Option)	Lenovo Computer: "Celeron” 4 CPU, 160G hard drive, 1G memory, 17” LCD monitor
Measuring Software	YR-VT measuring software ( it can realize the accurate measurement and flatness measurement of Z axis )
Lifting Column	Stable granite column
Instrument Base	000 grade stable granite base
Illumination	Surface and contour illumination both use brightness adjustable LED shadowless lamp
Dimension(L*W*H) (mm)	500*550*950	500*550*950	700*650*950	980*750*950	1050*800*950
Machine Weight (Kgs)	170	180	220	380	430
