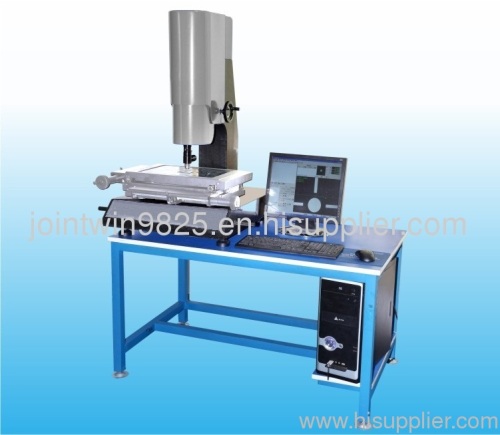

This machine is suitable for all 2D purpose's measurement for all coaxial metallurgical measuring industries of LCD, LED,IC chip etc. Functional YR-VT software can realize the functions of 2D flatness measurement, on the map, sample profile scanning, special SPC statistics, manual CNC measurement, Macroscopic measurement and so on. Z axis lifting system adopts granite column, which can realize non-contact precise measurement and flatness measurement.

Item          Model	YMM-1510JVT	YMM-2010JVT	YMM-3020JVT		YMM-4030JVT		YMM-5040JVT
X.Y.Z axis Travel (mm)	150*100*220	200*100*220	300*200*220		400*300*220		500*400*220
X.Y.Z Resolution	0.001mm
A X.Y Axis ccuracy	(3+L/200)um
Repeatability	3um
Measuring mode	Video type
Magnification	96-624X (120-1560X is available)
CCD Camera	0.43Mpixels high definition Sony chip CCD
Objectives	High definition 0.7~4.5X coaxial illumination zoom lens
Working distance	115mm (video)
Computer (Option)	Lenovo Computer : "Celeron" 4 CPU, 160G hard drive, 1G memory, 17" LCD monitor
Measuring Software	YR-VT measuring software ( it can realize Z axis accuracy measurement and flatness measurement )
Lifting Column	Stable granite column
Instrument Base	000 grade stable granite base
Illumination	Surface illumination adopts coaxial illumination, and contour illumination use brightness adjustable LED shadowless lamp
Dimension (L*W*H) (mm)	500*550*950	500*550*950		700*650*950		980*750*950		1050*800*950
Objective (Optional)	4X, 5X, 10X
Machine Weight (Kgs)	170	175		180		300		500
