Gantry-Type Large Travel Auto-CNC Vision Measuring Machine YMM-CNC Series

Payment Terms:	T/T
Place of Origin:	, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: YMM-CNC

Delivery Date: 12

Production Capacity: 1000

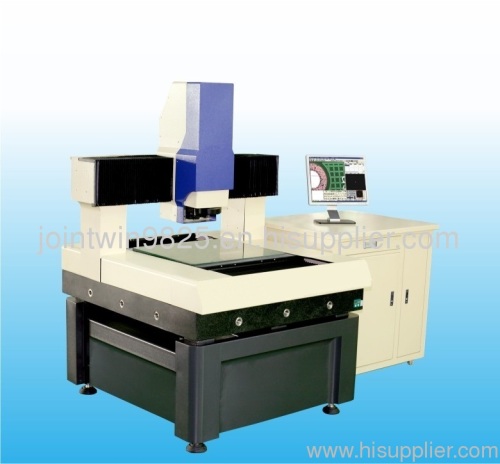

Gantry-Type Large Travel Auto-CNC Vision Measuring Machine YMM-CNC Series

Introduction:

Gantry-Type Large Travel Auto-CNC Vision Measuring Machine YMM-CNC Series are recently launched by us, it uses Germany toothless screw and servo control technology and combined with YR-CNC automatic measuring software developed y us and university jointly, which makes high-efficient and accurate inspection of work-piece in large quantities available. It is suitable for precise parts inspection and quality control, and widely used in industries of machinery, electronics, metal and plastic etc.

Specifications

Item Model	YMM-6045CNC	YMM-8060CNC	YMM-10080CNC	YMM-150120CNC
X.Y.Z Axis Travel	600450250mm	800600250mm	1000800250mm	15001200200mm
X.Y Axis Resolution	0.001mm
Measuring Software	YR-CNC Measuring software
Servo Motor	Origin Japan "Panasonic' Servo Motor
Measuring Hardware	Lenovo Computer +17" LCD Monitor ("Celeron" 4 CPU, 160G hard drive, 1G memory)
Total Magnification	24X~156X (12-312X is available)
Surface Illumination	8 Divisions program control light source
Contour Illumination	Green LED light source
Accuracy	X.Y Axis: (3+L/250)um
Repeatability	0.005mm
Transmission System	Germany toothless screw + Japan "THK" Linearity guide system
Operation Mode	CNC program control system
Loading Weight	50Kgs
Dimension (LWH)	132412201770mm	140020001500mm	160022001500mm	220025001200mm
Machine Weight	1350Kgs	2000Kgs	2200Kgs	3500Kgs
